PVC Static Mixers: Complete Guide to Sizes, Elements & Applications
Table of Contents
KEY TAKEAWAYS
- PVC static mixers cover 1/2" to 24" (larger on request), Schedule 40/80, in clear or gray PVC grades.
- NSF 61-certified options make PVC the default for potable-water dosing — municipal compliance without metal cost.
- Clear PVC grades allow visual inspection of the mixing process — a real operational advantage on dosing lines.
- Elements: Blade (turbulent), Helical (viscous), Non-clog (solids) — same family, matched to your flow regime.
- Temperature limit ~60°C — PVC is water/mild-chemical service; step up to PP/PVDF for hot or aggressive chemistry.
1. What Is a PVC Static Mixer?

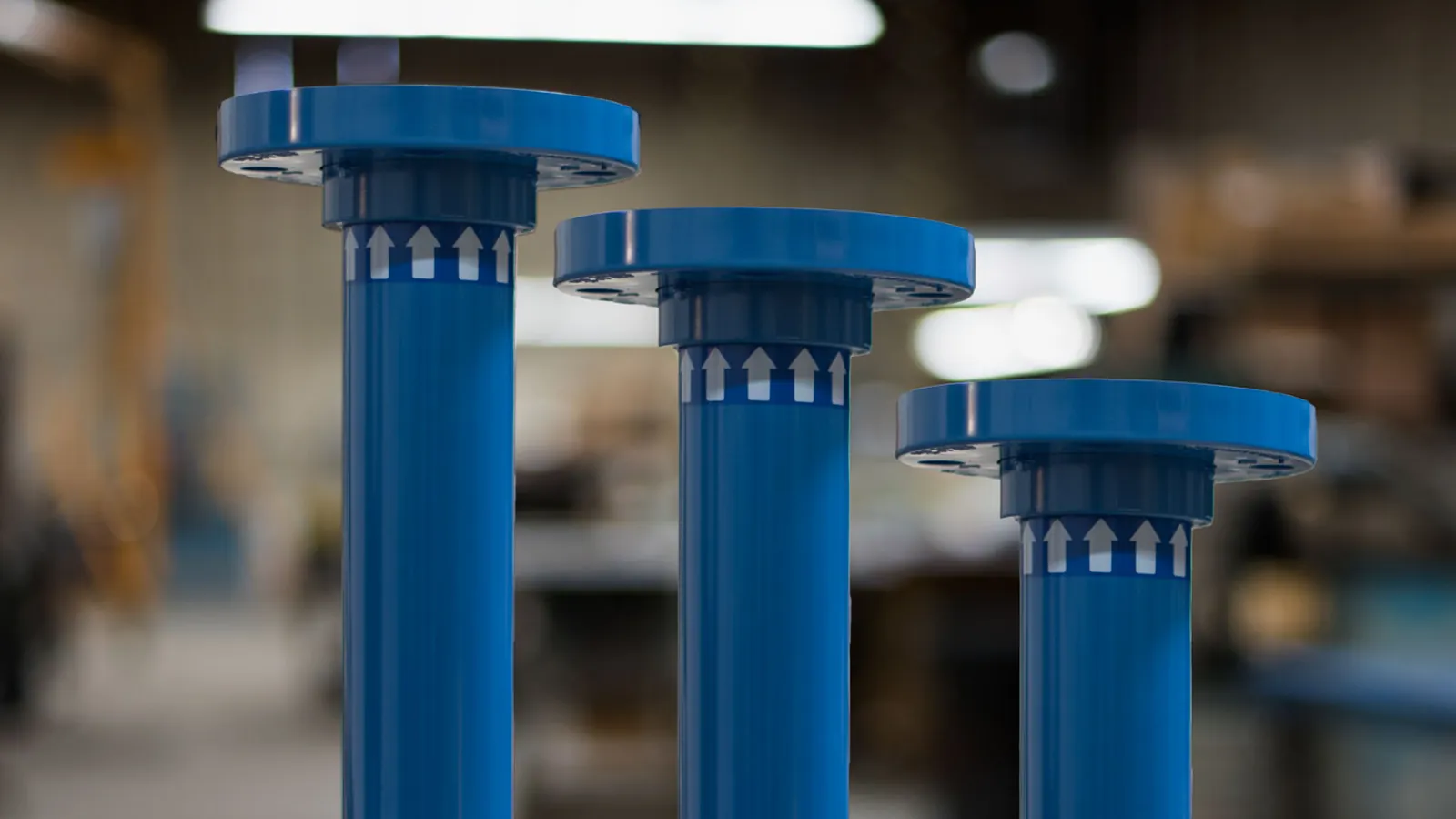

A PVC static mixer is a pipe section with fixed internal elements — no moving parts. The PVC housing (clear or gray) and elements mix fluids continuously using the flow's own energy.
Why PVC: lowest-cost material with NSF 61 potable-water certification and visual-inspection capability (clear grades). The standard choice for water treatment, chemical dosing, and pH control.
2. Size & Schedule Range
| Parameter | Range |
|---|---|
| Sizes | 1/2" – 24" (larger on request) |
| Pipe schedules | Schedule 40, Schedule 80 |
| Threads | ANSI B1.20.1 (NPT), BSPT |
| Ends | Threaded, flanged, plain |
| Grades | Clear PVC (visual), Gray PVC (standard) |
3. Element Options
| Element | Flow regime | Use |
|---|---|---|
| Blade | Turbulent (Re > 2,000) | Standard dosing, water treatment |
| Helical | Laminar (Re < 2,000) | Viscous fluids, polymer blending |
| Non-clog | Any (solids) | Slurries, wastewater |
Standard config: 6 elements; 12 for stricter CoV. Edge-sealed elements prevent fluid "slipstreaming" around the mixer wall.
4. NSF 61 & Potable Water
NSF 61 certification covers materials in contact with drinking water. PVC static mixers with NSF 61 option are the standard choice for municipal dosing lines (chlorine, pH, fluoride, coagulant).
Specify: "NSF 61-certified PVC static mixer" on municipal RFQs — compliance documentation ships with the unit.
5. Applications
| Duty | Notes |
|---|---|

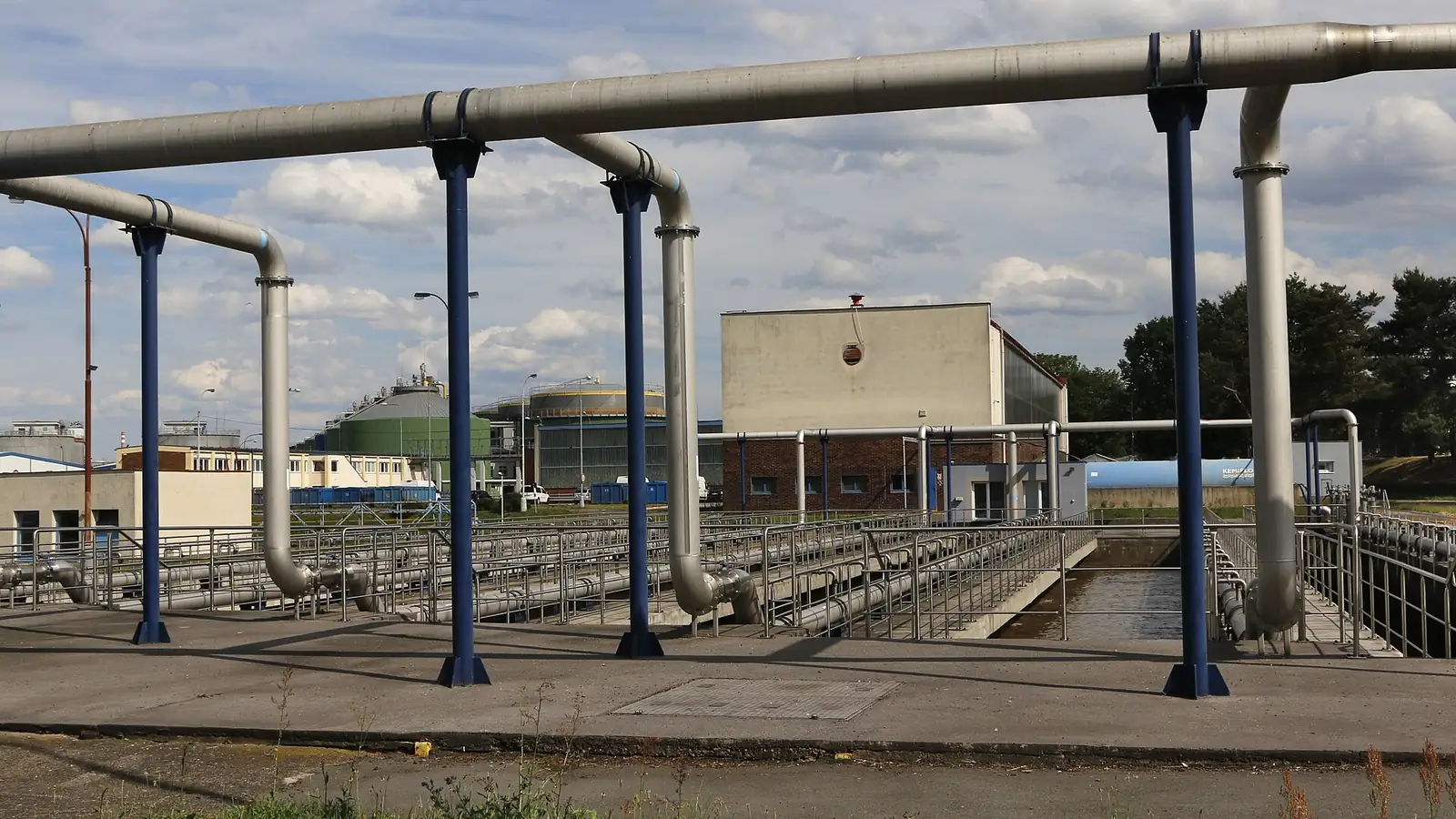

| Water treatment | Coagulant, chlorine, pH dosing |
| Chemical dosing | Inhibitor, biocide, anti-scalant |
| pH control | Acid/base neutralization |
| Polymer blending | Low-viscosity polymer solutions |
| Liquid/gas blending | Gas dispersion in water |
| Visual inspection | Clear PVC confirms mixing on-site |
6. Selection Checklist
- Size — match line diameter (1/2"-24").
- Schedule — 40 or 80 by pressure.
- Grade — clear (inspection) or gray.
- Elements — blade/helical/non-clog by Re.
- Ends — NPT, flanged, plain.
- NSF 61 — potable-water duty.
- Injection port — dosing lines.
7. FAQ
Q: What's the temperature limit for PVC static mixers? Roughly 60°C (140°F) continuous — above that, use PP or PVDF .
Q: Can I get a clear PVC mixer for visual inspection? Yes — clear PVC is a standard grade, ideal for confirming mixing on dosing lines.
Q: Is PVC static mixer safe for drinking water? With NSF 61 certification — yes. Specify the certified configuration.
Q: What's the pressure rating? Schedule 40/80 pipe ratings apply — check the schedule against your line pressure.
Your Action Roadmap
- Match size & schedule to your line.
- Pick grade — clear (inspection) or gray.
- Choose elements & ends.
- Get a quote — stock or custom, NSF 61 available.
→ Send us your line spec for a PVC mixer recommendation — typically answered within 24 hours.
